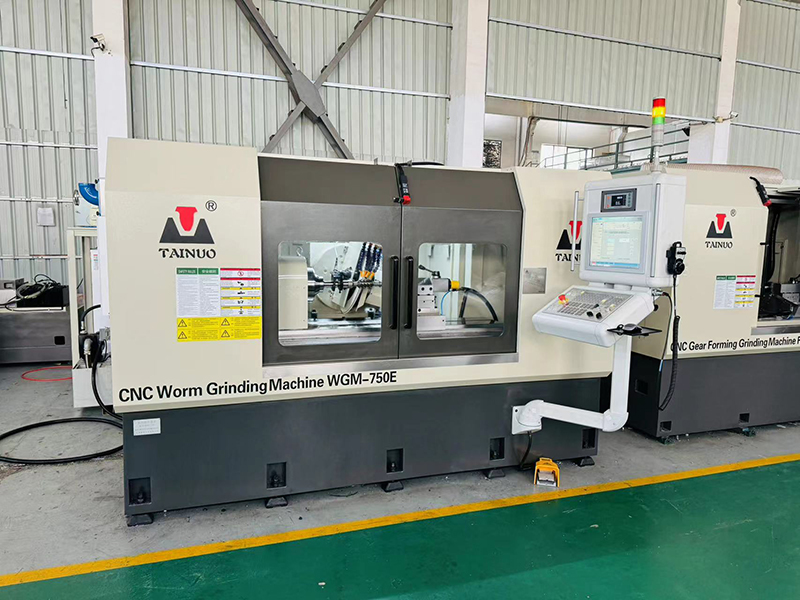

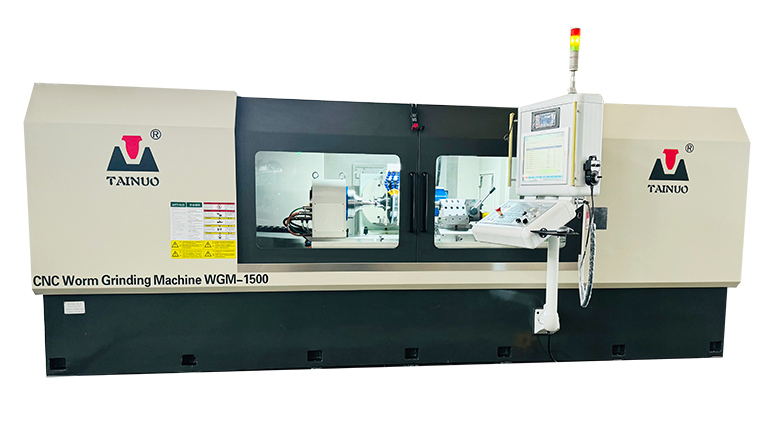

CNC Worm Grinding Machine

■ Introduction

● Advanced CNC supporting the precise and complex mathematical calculation

● Fine quality cast bed, 4 axes with 3 axes interpolation movement

● Z & X motion using the linear motor and encoder for closed loop control

● Torque motor table as part axis with encoder for closed loop control

● Forward and reverse grinding for high efficiency

● Forming dressing and interpolation of X and Z motion for online dressing

● Grinding wheel online balance system for motorized spindle

■ Applicable scope

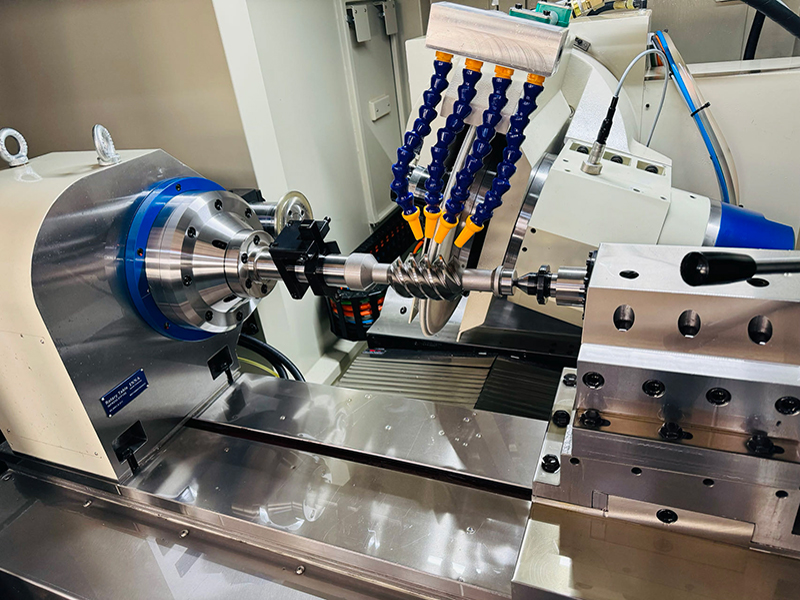

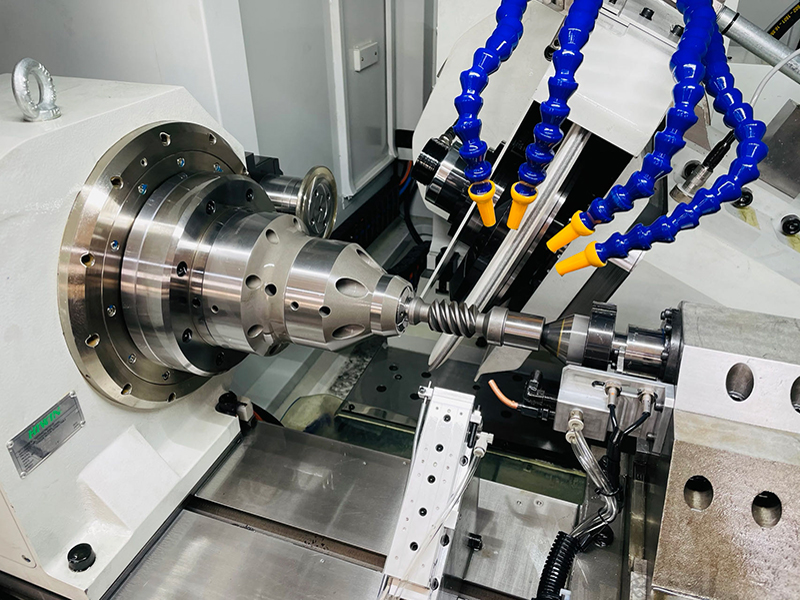

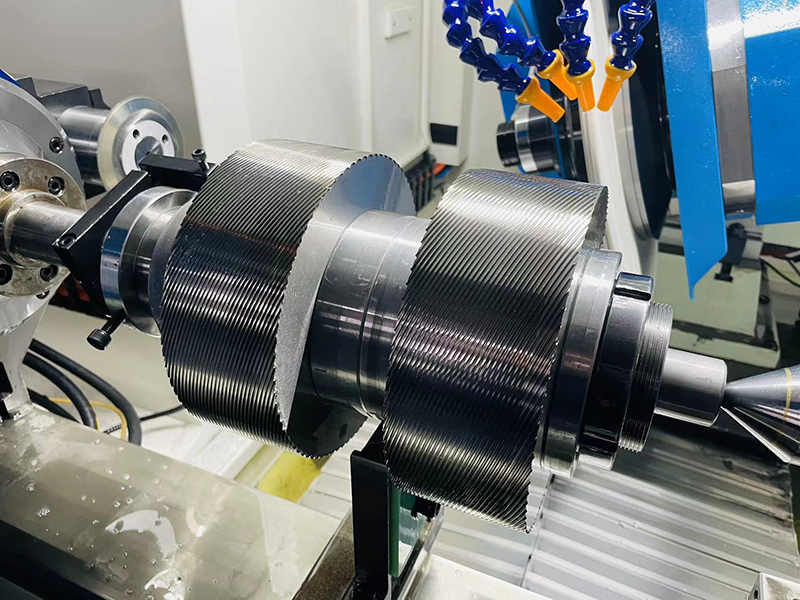

ZA/ZN/ZI/ZK/ZCworm(including dual lead worm), thread rolling taps, thread screw, electronic steering components such as EPS and more.

■ Technical specifications

WGM-400 WGM-750 WGM-1000 WGM-1500 WGM-2000 WGM-3000 WGM-4000
Centre Distance 400mm 750mm 1000mm 1500mm 2000mm 3000mm 4000mm
Effective Length 400mm 600mm 1000mm 1500mm 2000mm 3000mm 4000mm
Max. Module M4 M8（M12） M12 M16 M24 M30 M40
Centre Height 210mm 250mm 250mm 250mm 250mm 250mm 250mm
Max.Part Diamter Ф200mm Ф250mm Ф250mm Ф250mm Ф250mm Ф250mm Ф250mm
Lead Angle ±45° ±45° ±45° ±45° ±45° ±45° ±45°
Lead Start Any Any Any Any Any Any Any
Table Transverse Stroke Z=600mm Z=790mm Z=1200mm Z=1700mm Z=2200mm Z=3200mm Z=4200mm
Wheel Longitudinal Stroke X=330mm X=340mm X=340mm X=340mm X=340mm X=340mm X=340mm
Grinding Spindle 15kw 7000rpm 22kw 4000rpm / 25 kw 6000rpm 35kw 4000rpm / 44kw 4000rpm
Max. Grinding Wheel Ф450×φ203mm Ф500×φ203mm Ф500×φ203mm Ф500×φ203mm Ф500×φ203mm Ф500×φ203mm Ф500×φ203mm
CNC System FANUC / LYNUC FANUC / LYNUC FANUC / LYNUC FANUC / LYNUC FANUC / LYNUC FANUC / LYNUC FANUC / LYNUC
Power Supply 3AC 380V 35KVA 3AC 380V 40KVA 3AC 380V 40KVA 3AC 380V 40KVA 3AC 380V 45KVA 3AC 380V 45KVA 3AC 380V 45KVA
Main Machine Size 2400×2200×1950 2950×2100×1950 4300×2100×1950 4920×2100×1950 5930×2100×1950 5000×2100×1950 6250×2100×1950
Apprx.Machine Weight 6,000kg 7,000kg 8,500kg 10,000kg 12,000kg 11,000kg 13,500kg
